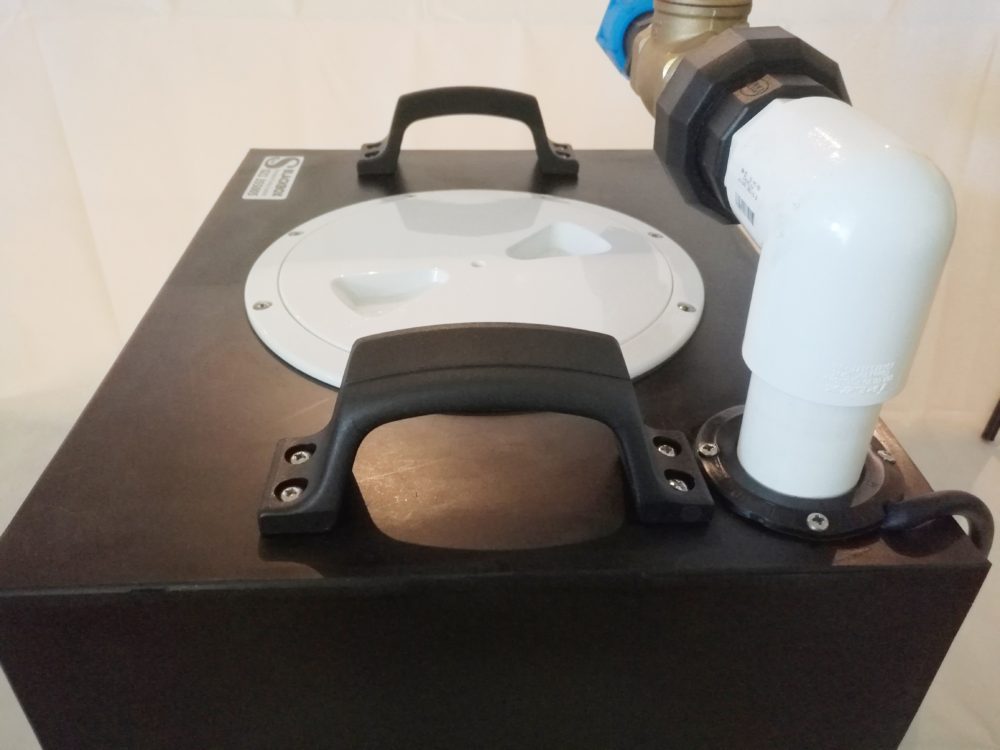

The BLACKBOX-62 is a portable, all-in-one waste disposal solution — a commercial-grade wastewater holding tank with a fully automated pump system. It's the perfect way to move waste water from portable cabins, portable offices, tiny homes and semi-permanently sited RVs to a suitable drain on a suburban or rural property, building site, holiday bach and more.
How it works
Waste water from the kitchen, bathroom and toilet drains into the 62-litre holding tank. Inside sits a large-capacity 750 W centrifugal pump (15,000 litres/hour) with a built-in float switch: when the fluid reaches a set level, the float automatically switches the pump on and the waste is pumped out through the 40 mm outlet pipe; when the level drops, the pump switches itself off. Fully automatic — no manual emptying.
Why BLACKBOX-62
- Can be installed inside or outside a building or recreational vehicle
- Minimal moving parts to clog up or break
- Designed for low stress on all components — problem-free service and a long operational life
-
Manufactured in New Zealand from best-quality components
-
Simple installation — can be DIY installed without professional assistance
Performance
The pump moves fluids up to 100 m in distance or up to an 8 m head height (manufacturer's specs). We recommend working on 80 m distance or 6 m head height — it's best to be conservative with toilet waste. The pump has a 40 mm flow diameter; connect 40 mm or 50 mm alkathene pipe or 40 mm pressure pipe to the outlet.
What's in the box
- 62-litre premium-grade tank
- 25 mm emergency drain tap
- 750 W 40 mm submersible sewage pump with float switch

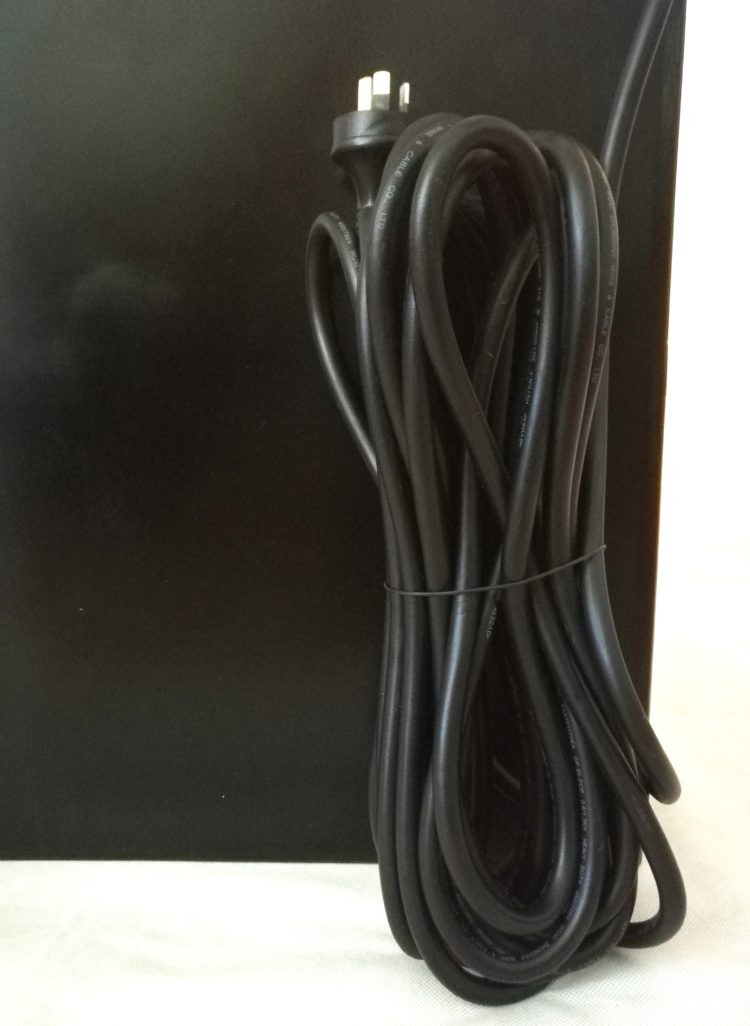

- 10-metre 3-pin plug lead

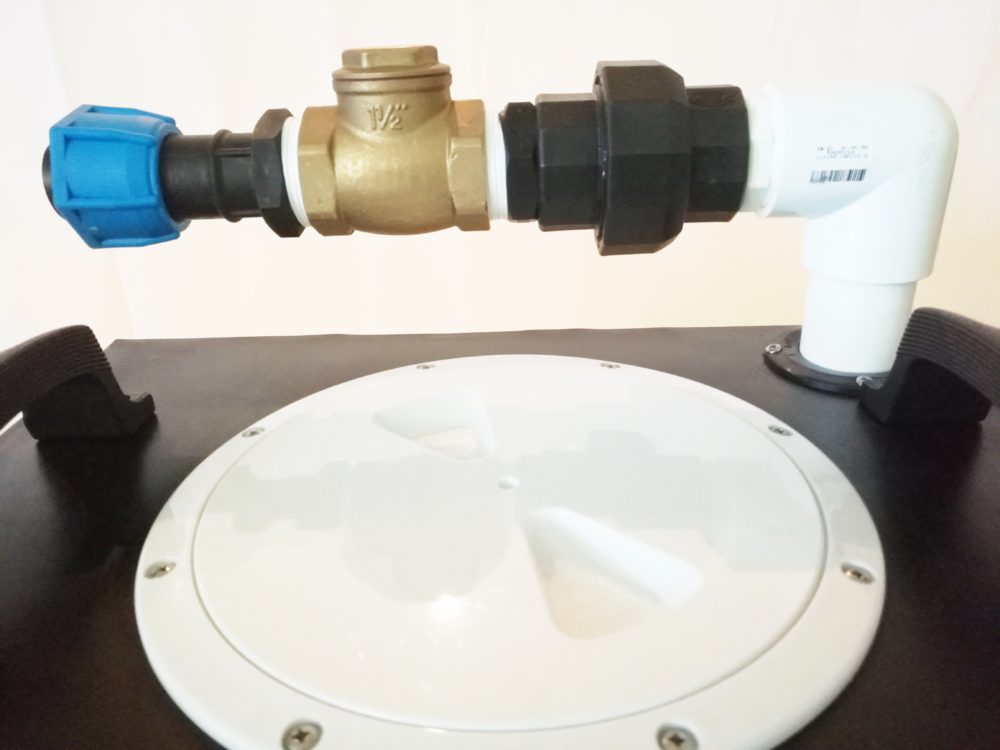

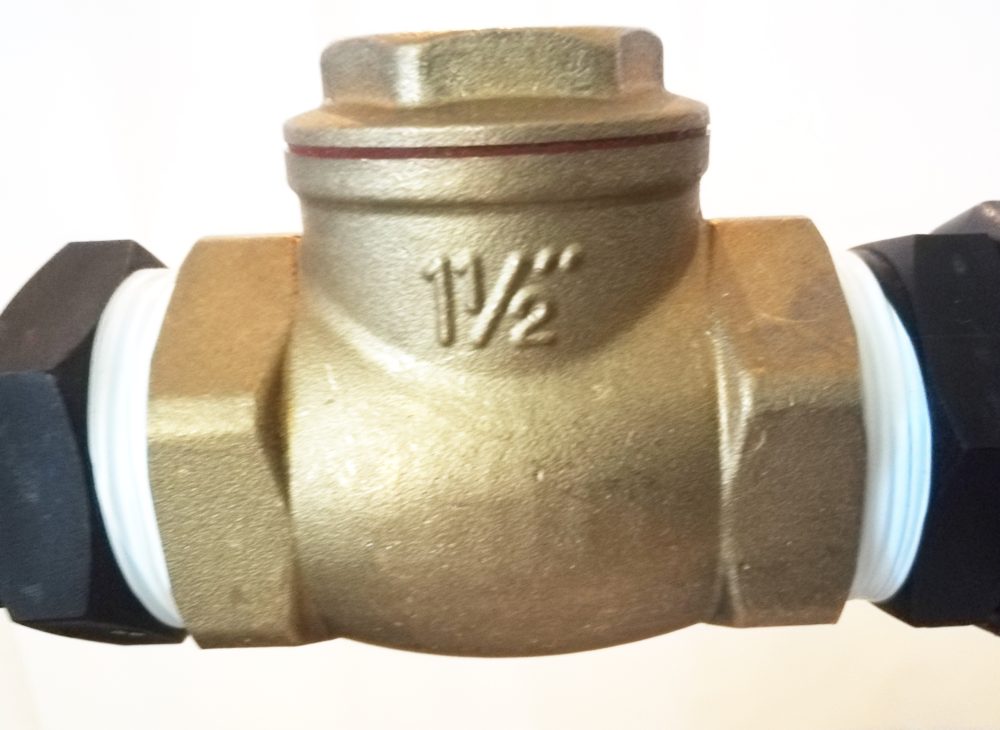

- Brass flap check valve

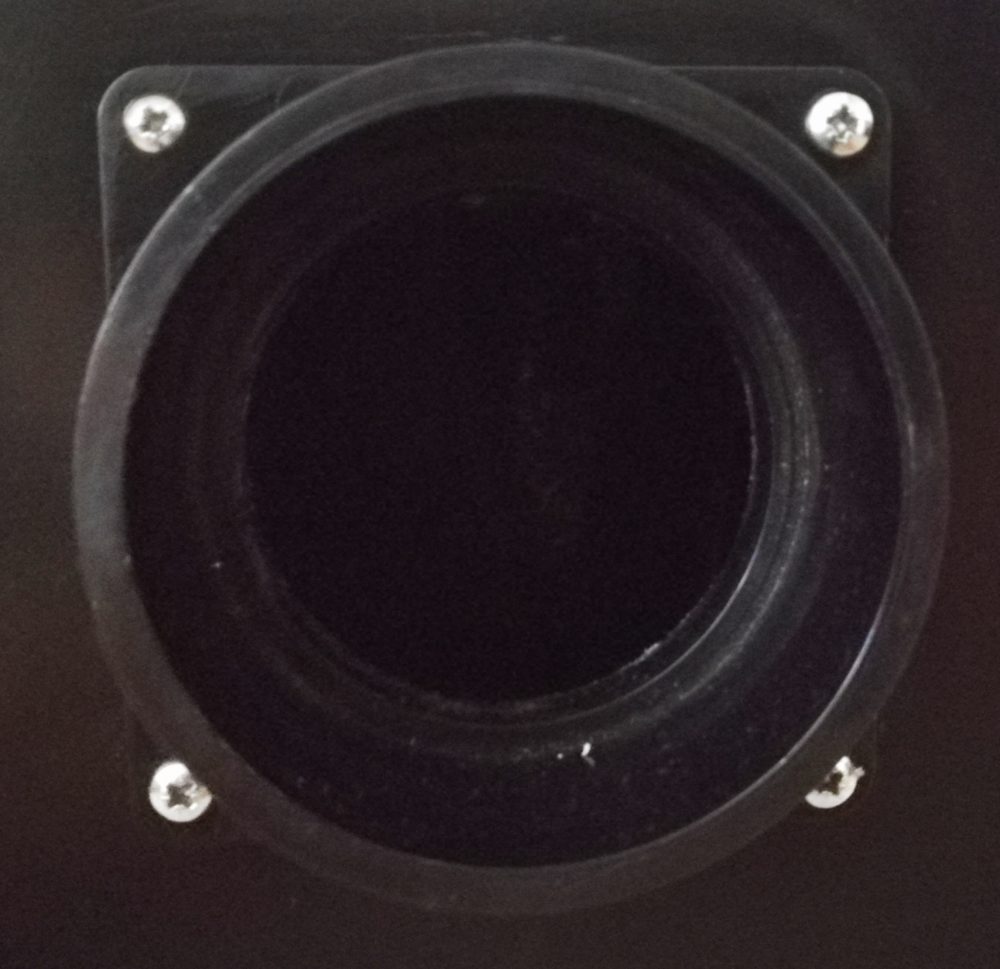

- 80 mm Valterra RV inlet connection (with 80–100 mm adaptor fitting)

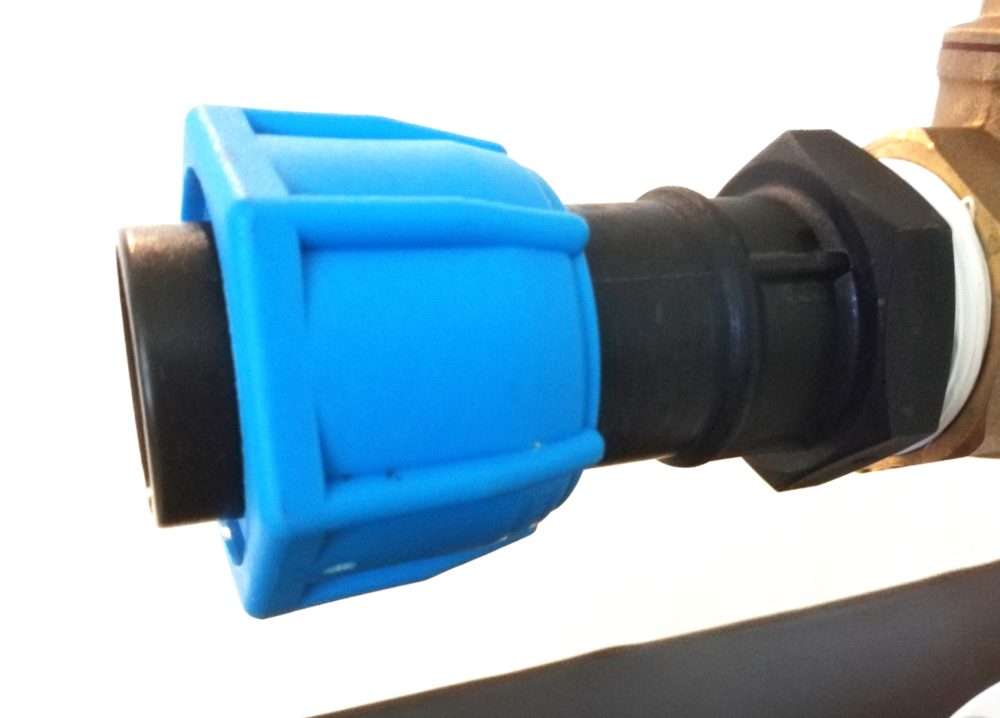

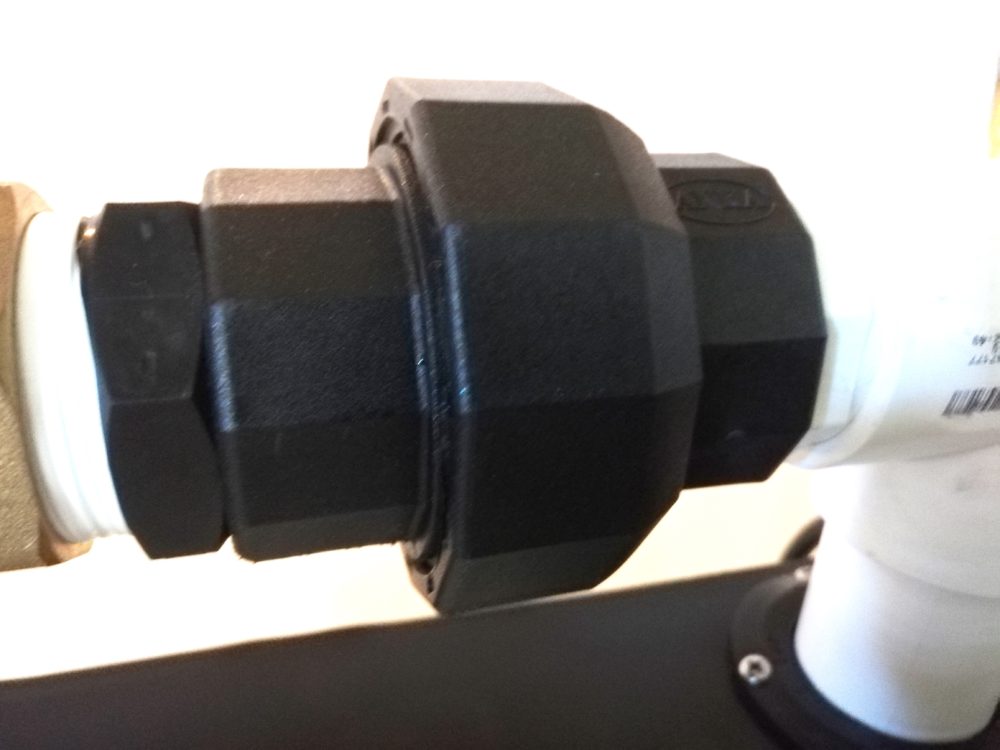

- Quick-release Anka barrel union

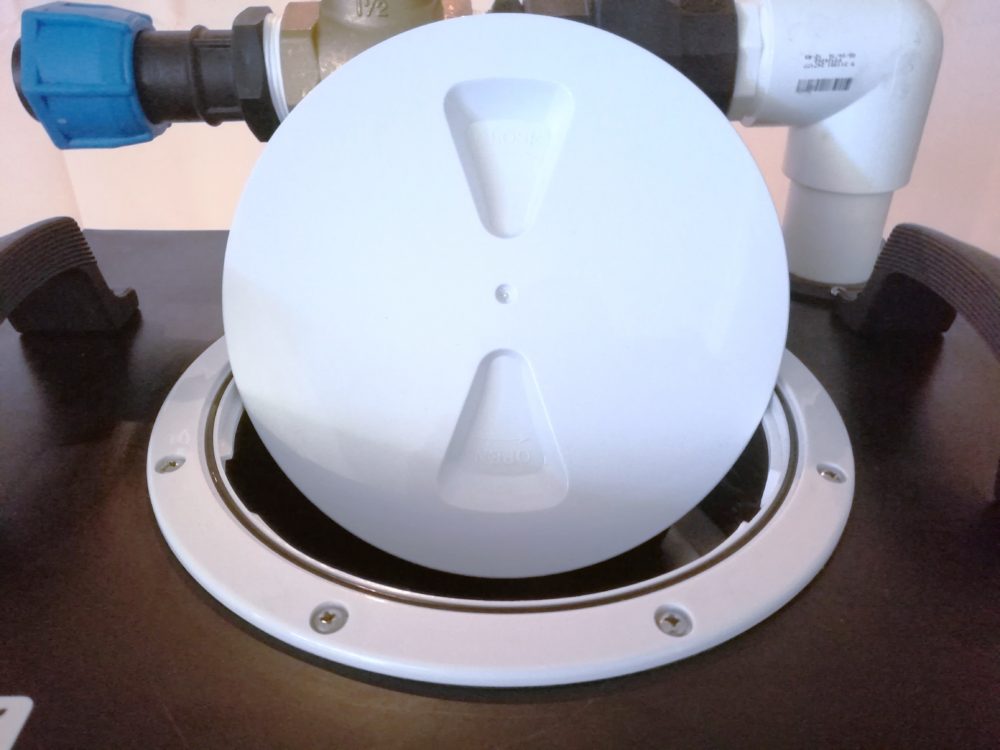

- 220 mm airtight hatch

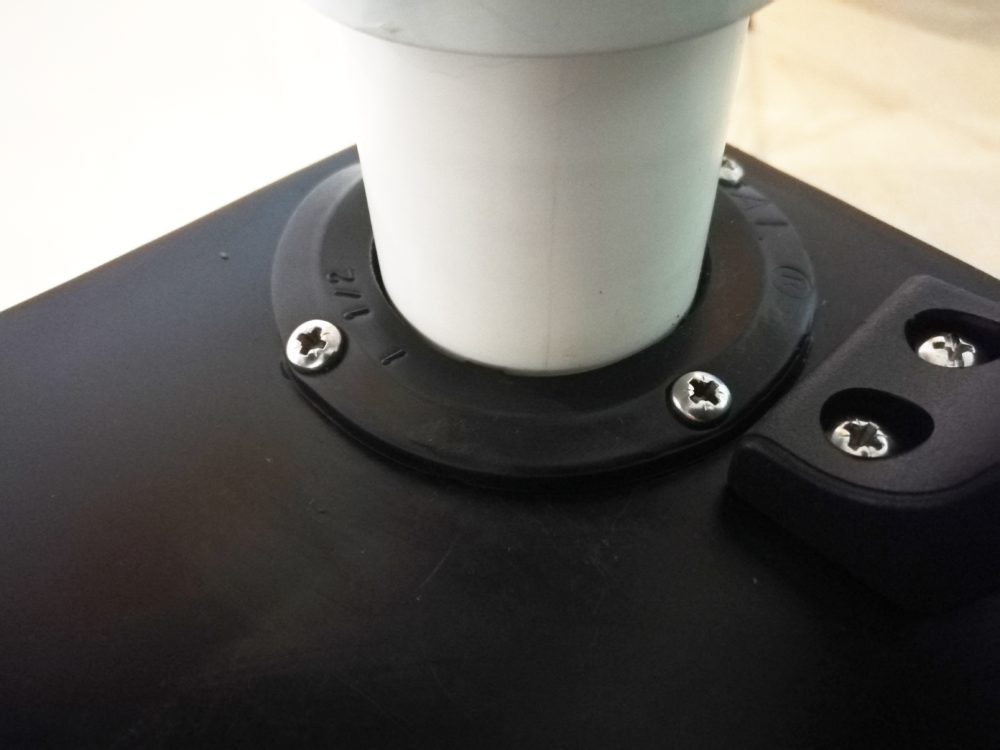

- 40 mm outlet connection fitting
- Tank vent
- Certified pressure pipe and pressure fitting
- Rubber Uniseal (USA)
Tank specifications
| Standard |
Exceeds NZ standard AS/NZS 4766 |
| Construction |
One piece — exceptionally strong, easy to clean |
| Durability |
Won't crack, fade or rust; UV stabilised for harsh NZ sun; resists algae growth |
| Height |
455 mm |
| Depth |
455 mm |
| Width |
350 mm |
| Capacity |
62 litres |
Pump specifications
| Motor |
750 W |
| Flow rate |
15,000 litres/hour |
| Max head height |
6 m (conservative) |
| Max particle size |
35 mm |
| Cable length |
10 m |
| Max temperature |
35°C |
Warranty
| Pump |
36 months (return to base) |
| Holding tank |
20 years (return to base) |
| Satisfaction guarantee |
7-day return-to-base refund |
Trusted across New Zealand
A local manufacturer of portable cabins has replaced over 100 macerator systems with BLACKBOX-type systems. White, budget imported macerator systems are simply not comparable for performance.
"Wonderful service, shipped promptly post payment. Awesome product, can highly recommend. A+. Item as described: 5/5. Seller communication: 5/5. Delivers on time: 5/5. Item quality: 5/5." — Gennine

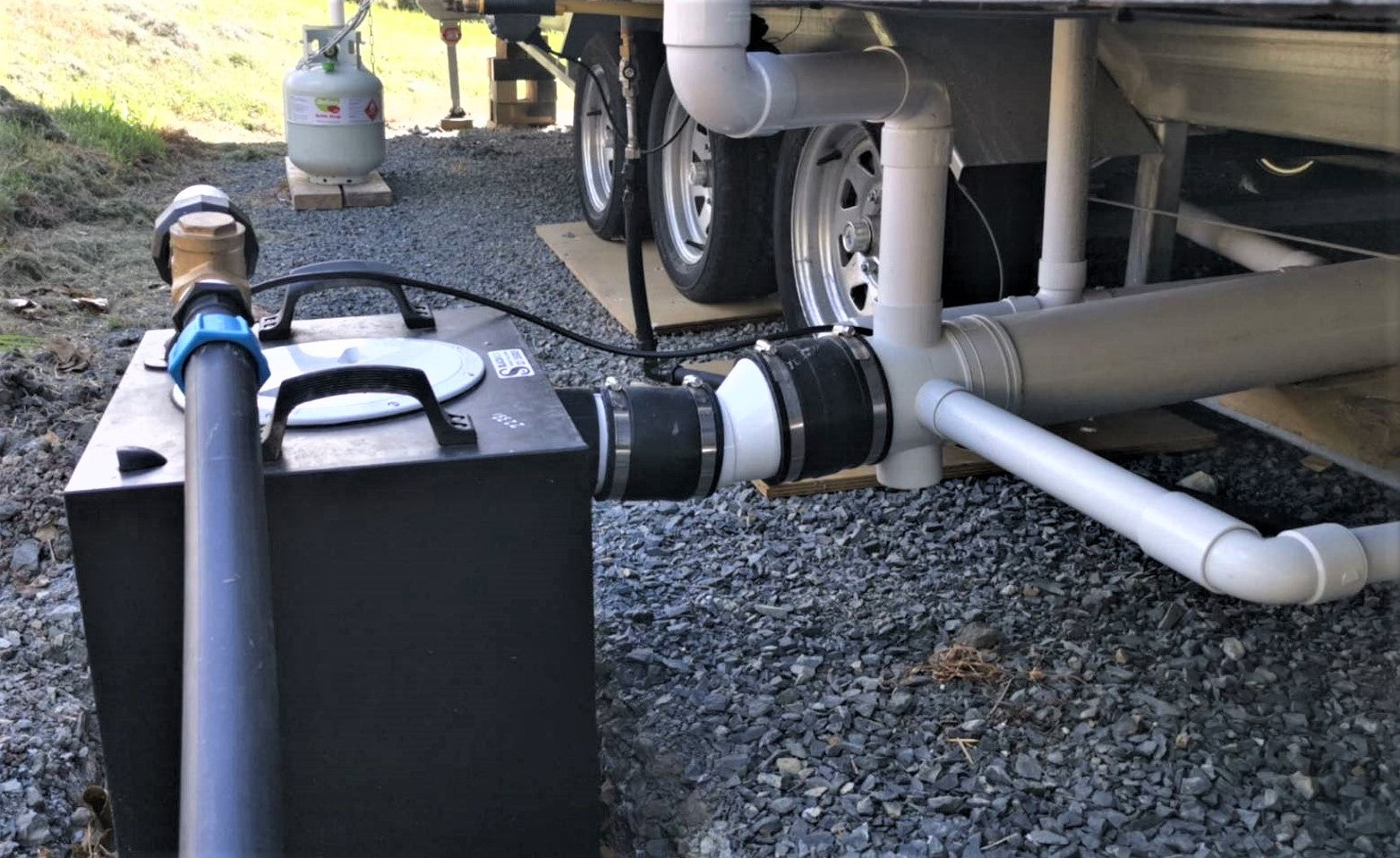

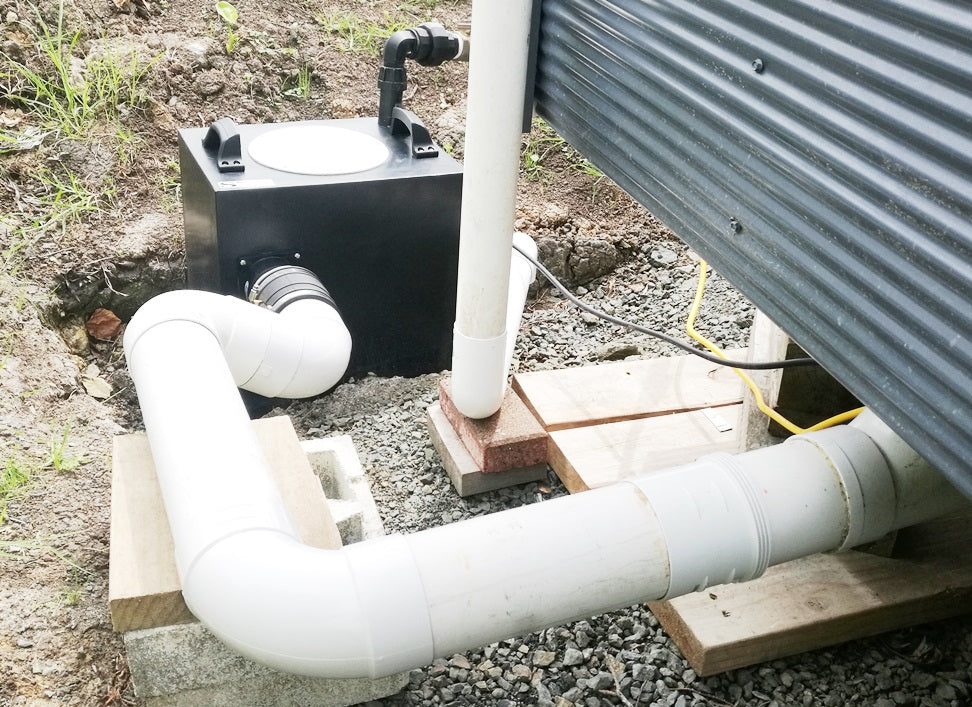

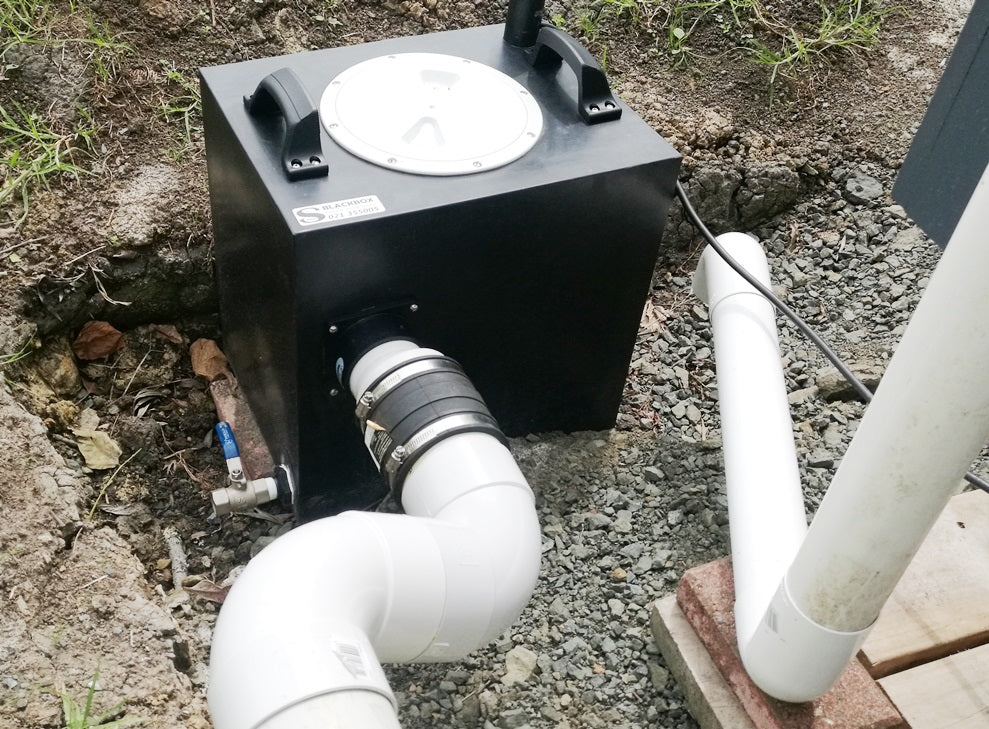

"We build portable accommodation and find the BlackBox to be a great unit. They are located outside the building so that if there is ever a blockage/leak or any other problem, there is no mess inside and the toilet doesn't have to be removed to get access like other macerator units. These are a great solution!" — Josh

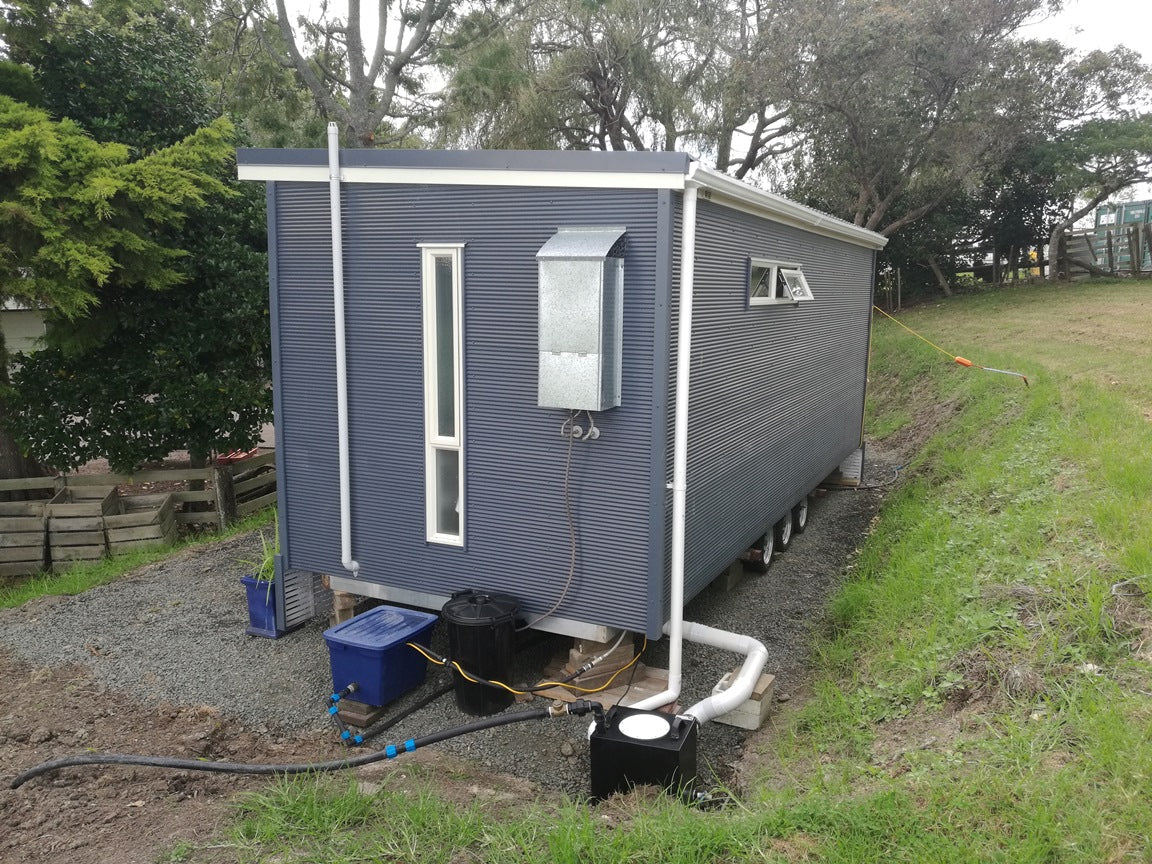

"The BlackBox is a great unit. Does its job well and very easy to install. Perfect for our tiny home. Tim was also awesome to deal with and got the unit to us very fast." — Johnnie
"We have been using Blackboxes for years on our customer's Tinyhomes and also on our own property. A fantastic product, easy to install & service, solidly built, and extremely reliable. Highly recommended." — Koru Cabins
