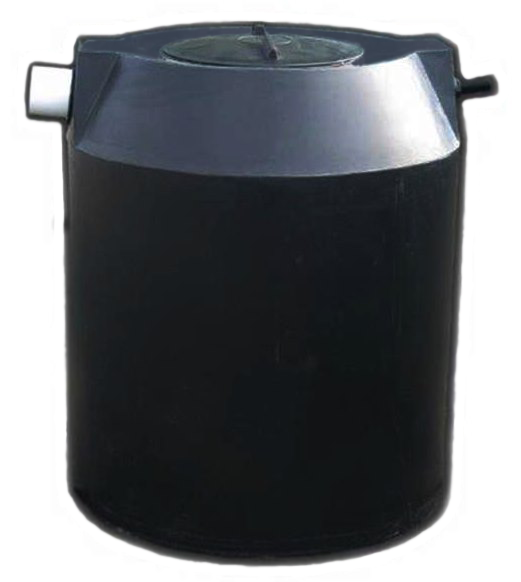

The BLACKBOX-270 is a portable, all-in-one waste disposal solution — a commercial-grade wastewater holding tank with an automated pump system. It's the perfect way to move waste water from portable cabins, portable offices, baches, semi-permanently sited vehicles or general dwellings to a suitable waste or grey-water disposal location.

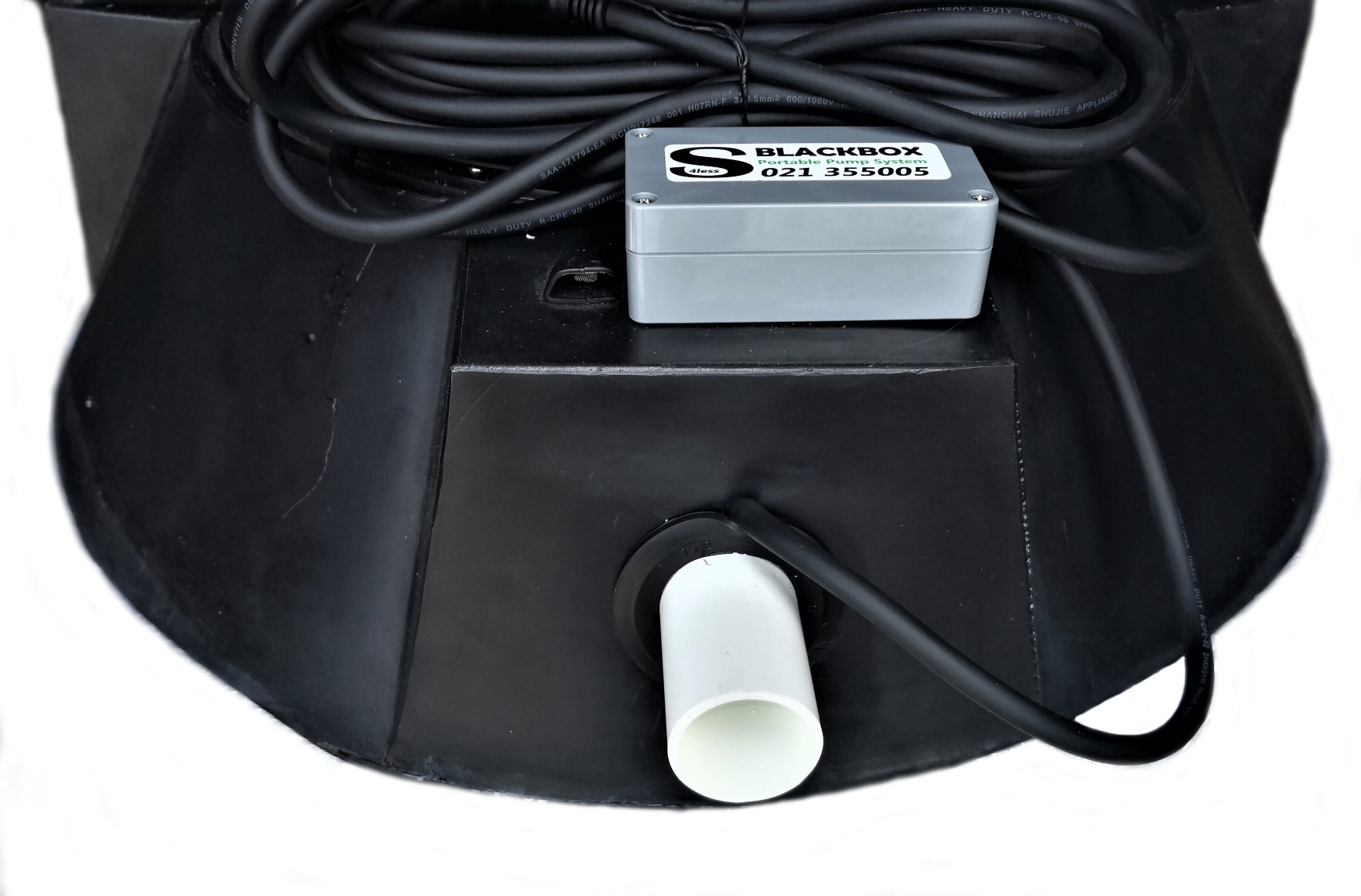

Waste water from the kitchen, bathroom, wash house and toilet drains into the 270-litre holding tank. Inside sits a large-capacity 1000 W centrifugal pump (19,500 litres/hour) with a built-in float switch: when the fluid reaches a set level, the float automatically switches the pump on and the waste is pumped out through the 40 mm outlet pipe; when the level drops, the pump switches itself off. Fully automatic — no manual emptying.
The BLACKBOX-270 pumps fluids up to 180 m in distance or up to a 10.5 m head height. We recommend working on 140 m distance or 9 m head height — it's best to be conservative with toilet waste. The pump has a 40 mm flow diameter.
| Standard | Exceeds NZ standard AS/NZS 4766 |
| Construction | One piece — exceptionally strong, easy to clean |
| Durability | Won't crack, fade or rust; UV stabilised for harsh NZ sun; resists algae growth |
| Height | 790 mm |
| Diameter | 710 mm |
| Capacity | 270 litres |
| Motor | 1000 W |
| Flow rate | 19,500 litres/hour |
| Max head height | 9 m |
| Max immersion | 7 m |
| Max particle size | 35 mm |

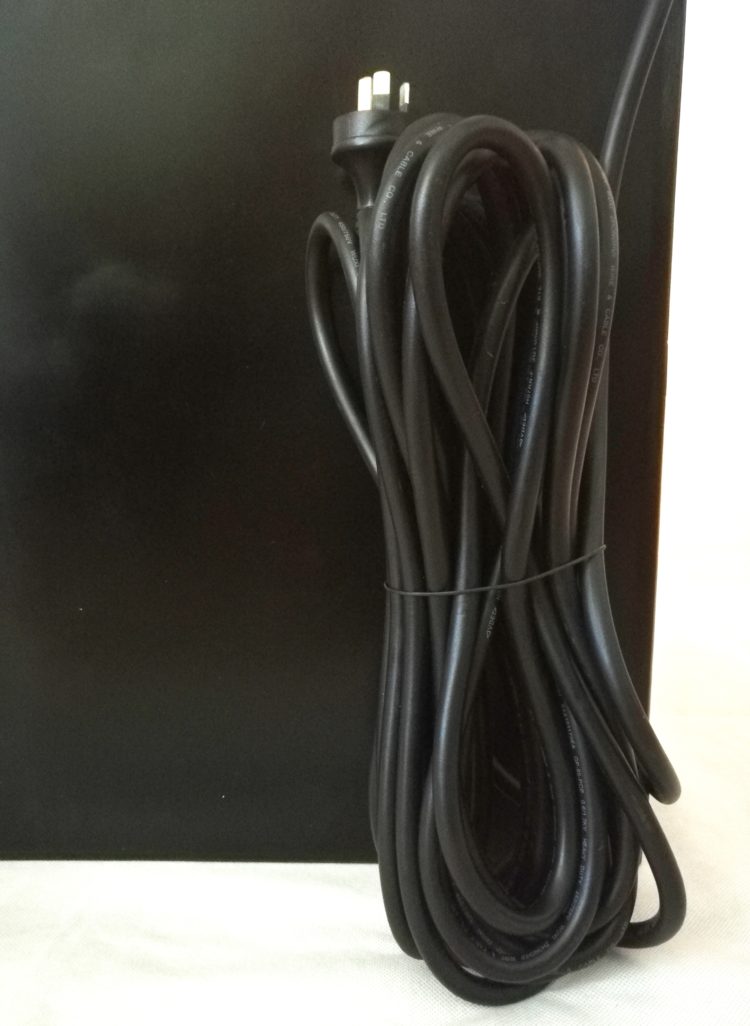

| Cable length | 10 m |
| Max temperature | 35°C |
| Pump | 36 months (return to base) |
| Holding tank | 20 years (return to base) |
| Satisfaction guarantee | 7-day return-to-base refund |
White, budget imported macerators are not comparable for performance.
"Wonderful service, shipped promptly post payment. Awesome product, can highly recommend. A+. Item as described: 5/5. Seller communication: 5/5. Delivers on time: 5/5. Item quality: 5/5." — Gennine
"We build portable accommodation and find the BlackBox to be a great unit. They are located outside the building so that if there is ever a blockage/leak or any other problem, there is no mess inside and the toilet doesn't have to be removed to get access like other macerator units. These are a great solution!" — Josh
"The BlackBox is a great unit. Does its job well and very easy to install. Perfect for our tiny home. Tim was also awesome to deal with and got the unit to us very fast." — Johnnie
"We have been using Blackboxes for years on our customer's Tinyhomes and also on our own property. A fantastic product, easy to install & service, solidly built, and extremely reliable. Highly recommended." — Koru Cabins
Best quality, lowest price — a specified supplier to Government housing projects. Working hard to keep prices down.
